Folding Vented Pallet Box (IBC)
SKU BPB-E1165FV
TL;DR: The BPB-E1165FV is a medium duty bulk container with a 1162 × 1162 mm footprint, rated to 3,000 kg static / 1,000 kg dynamic, 4-way forklift entry. Moulded from PP, HDPE.
Vented, folding (collapsible) Australian Standard pallet box (IBC / Pallecon)
Send your quantity and delivery postcode, we'll come back with a spec-backed quote in one business day.
| Footprint (L × W × H) | 1162 × 1162 × 785 mm Catalogue specification |
|---|---|
| Internal (L × W × H) | 1082 × 1082 × 640 mm Catalogue specification |
| Folded height | 299 mm Catalogue specification |
| Unit weight | 53 kg Catalogue specification |
| Static load (SWL) | 3,000 kg Confirm for operating conditions |
| Dynamic load (SWL) | 1,000 kg Confirm for operating conditions |
| Racking load (SWL) | 500 kg Confirm for operating conditions |
| Load rating | Medium Duty Confirm for operating conditions |
| Volume | 750 L Catalogue specification |
| Forklift entry | 4-way Catalogue specification |
| Bottom support | 2 Skids Confirm for operating conditions |
| Material | PP, HDPE Documentation available on request |
| Min. order (indicative) | 8 units Confirm at quote |
A Riverina (NSW) brown-onion grower-packer running curing and cold storage.
Read the full case study: How a Riverina onion packer cut centre-of-stack rot with a folding vented pallet box → Representative anonymised example, client names withheld. Figures are planning estimates; your results depend on your operation.Who it's for
Used across Agriculture, Food Distribution Logistics, Supermarket, Supply Chain & Third Party Logistics (3PL), spec'd by operations, procurement and HSE teams that handle it daily.
Typical uses
- Bulk storage and transport of produce, granular or liquid loads
- Ventilated storage of produce and breathable goods, sheds field heat and moisture
- Closed-loop / return logistics where empty space and freight matter
- Food, beverage or pharmaceutical handling, subject to application and supplier-document checks
Why operations choose the BPB-E1165FV for produce handling and storage

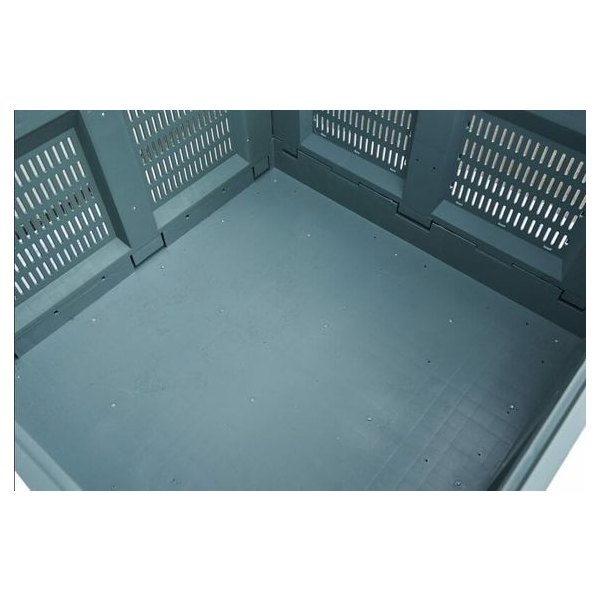

- 1 Airflow that protects the load
Vented walls and base move air through the whole stack, shedding field heat, moisture and respiration gases, that is what keeps potatoes, onions and other produce firm and storing for longer instead of sweating and rotting in a sealed box.

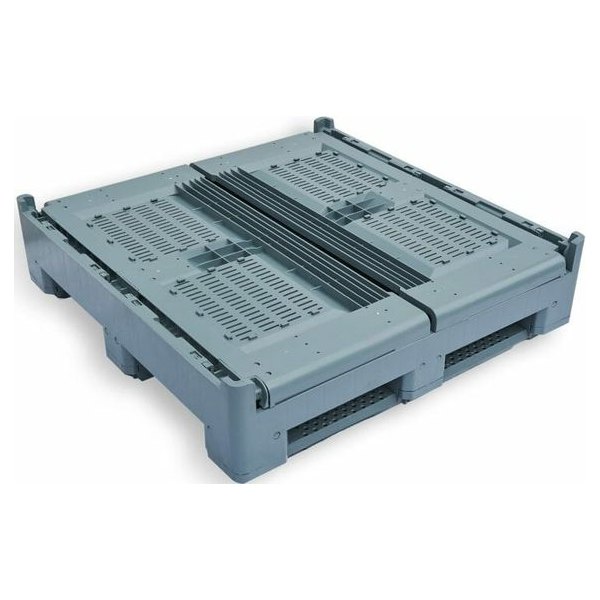

- 2 Folds flat for the back-haul
Erected it stands 785 mm; collapsed it drops to 299 mm, roughly a 2.6:1 collapse. Empties ride back at a fraction of the cube, so return-freight and off-season storage stop eating your yard and your trailer space.
- 3 A cleanable format to assess
The catalogue lists PP, HDPE construction with no nails or splinters. Confirm food-contact documentation, chemical compatibility and the required wash temperature against your own hygiene plan before specifying it.
Common questions, BPB-E1165FV
What size is the BPB-E1165FV?
The BPB-E1165FV has a 1162 × 1162 × 785 mm footprint, with internal dimensions 1082 × 1082 × 640 mm. It folds down to 299 mm high when empty.
How much weight can the BPB-E1165FV hold?
The catalogue records 3,000 kg static (stationary, evenly distributed), 1,000 kg dynamic (while moved by forklift or jack), 500 kg racking (unsupported on beam racking). Confirm the rating against load distribution, temperature, handling and racking conditions when you request a quote.
What is the BPB-E1165FV made from?
The catalogue lists PP, HDPE (PP, HDPE). For food contact, pharmaceutical, chemical or other regulated use, request the applicable supplier declaration and confirm the cleaning process for your application.
Is the BPB-E1165FV ventilated?
Yes, vented walls and base move air through the whole load, shedding field heat, moisture and respiration gases. That is what keeps potatoes, onions and other produce storing longer.
Does the BPB-E1165FV fold flat?
Yes, it collapses to 299 mm when empty, reclaiming yard space and cutting return-freight on the back-haul.
How do I order the BPB-E1165FV?
Send your quantity (typically from 8 units) and delivery postcode and we will return a spec-backed quote in one business day, delivered Australia-wide. If it is not the exact fit, we also manufacture, import and source to spec, and sometimes carry second-hand stock.
