Low Folding Vented Pallet Box (IBC)
SKU BPB-K1165HV
TL;DR: The BPB-K1165HV is a light weight bulk container with a 1162 × 1162 mm footprint, rated to 2,800 kg static / 700 kg dynamic, 2-way forklift entry. Moulded from HDPE.
Vented, folding (collapsible) Australian Standard half bin (bulk container / IBC / Pallecon)
Send your quantity and delivery postcode, we'll come back with a spec-backed quote in one business day.
| Footprint (L × W × H) | 1162 × 1162 × 560 mm Catalogue specification |
|---|---|
| Internal (L × W × H) | 1090 × 1080 × 400 mm Catalogue specification |
| Folded height | 280 mm Catalogue specification |
| Unit weight | 44 kg Catalogue specification |
| Static load (SWL) | 2,800 kg Confirm for operating conditions |
| Dynamic load (SWL) | 700 kg Confirm for operating conditions |
| Racking load (SWL) | 350 kg Confirm for operating conditions |
| Load rating | Light Weight Confirm for operating conditions |
| Volume | 470 L Catalogue specification |
| Forklift entry | 2-way Catalogue specification |
| Bottom support | 2 Skids Confirm for operating conditions |
| Material | HDPE Documentation available on request |
| Min. order (indicative) | 9 units Confirm at quote |
A Lockyer Valley mixed brassica and root-vegetable grower.
Read the full case study: How a Lockyer Valley grower stopped crushing soft lines with a shallower vented half bin → Representative anonymised example, client names withheld. Figures are planning estimates; your results depend on your operation.Who it's for
Used across Agriculture, spec'd by operations, procurement and HSE teams that handle it daily.
Typical uses
- Bulk storage and transport of produce, granular or liquid loads
- Ventilated storage of produce and breathable goods, sheds field heat and moisture
- Closed-loop / return logistics where empty space and freight matter
Why operations choose the BPB-K1165HV for produce handling and storage
- 1 Airflow that protects the load
Vented walls and base move air through the whole stack, shedding field heat, moisture and respiration gases, that is what keeps potatoes, onions and other produce firm and storing for longer instead of sweating and rotting in a sealed box.
- 2 Folds flat for the back-haul

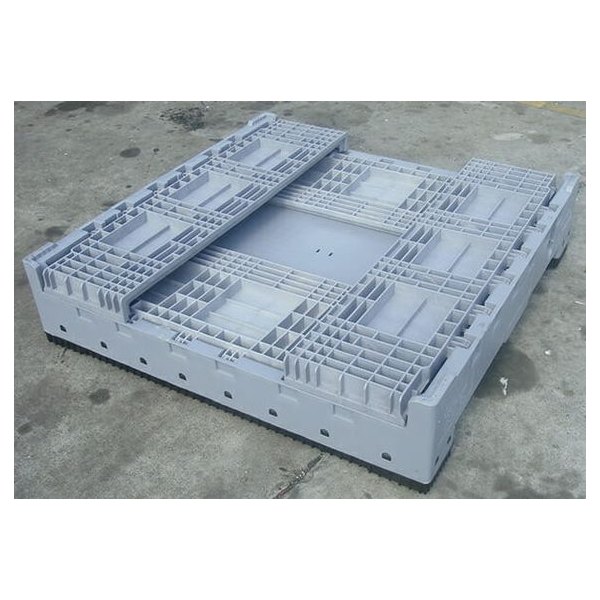

Erected it stands 560 mm; collapsed it drops to 280 mm, roughly a 2:1 collapse. Empties ride back at a fraction of the cube, so return-freight and off-season storage stop eating your yard and your trailer space.
- 3 A recorded racking load
The catalogue records beam-racking use to 350 kg unsupported. Always design to the racking figure—not the higher static rating—and confirm the complete rack, load and safety-factor design for your site.
Common questions, BPB-K1165HV
What size is the BPB-K1165HV?
The BPB-K1165HV has a 1162 × 1162 × 560 mm footprint, with internal dimensions 1090 × 1080 × 400 mm. It folds down to 280 mm high when empty.
How much weight can the BPB-K1165HV hold?
The catalogue records 2,800 kg static (stationary, evenly distributed), 700 kg dynamic (while moved by forklift or jack), 350 kg racking (unsupported on beam racking). Confirm the rating against load distribution, temperature, handling and racking conditions when you request a quote.
What is the BPB-K1165HV made from?
The catalogue lists HDPE (high-density polyethylene). For food contact, pharmaceutical, chemical or other regulated use, request the applicable supplier declaration and confirm the cleaning process for your application.
Is the BPB-K1165HV ventilated?
Yes, vented walls and base move air through the whole load, shedding field heat, moisture and respiration gases. That is what keeps potatoes, onions and other produce storing longer.
Does the BPB-K1165HV fold flat?
Yes, it collapses to 280 mm when empty, reclaiming yard space and cutting return-freight on the back-haul.
How do I order the BPB-K1165HV?
Send your quantity (typically from 9 units) and delivery postcode and we will return a spec-backed quote in one business day, delivered Australia-wide. If it is not the exact fit, we also manufacture, import and source to spec, and sometimes carry second-hand stock.
